ryujin::Simulation< HD, PD, dim, Number > Class Template Reference

#include <include/ryujin/driver/simulation.h>

Inheritance diagram for ryujin::Simulation< HD, PD, dim, Number >:

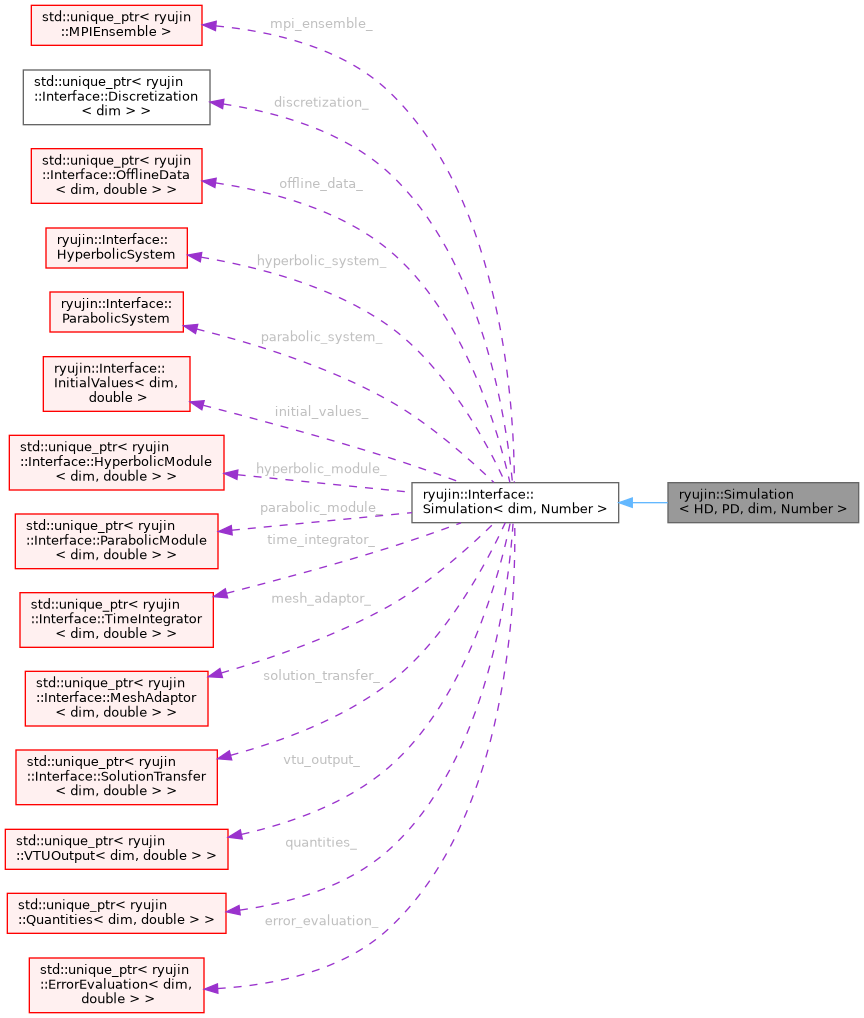

Collaboration diagram for ryujin::Simulation< HD, PD, dim, Number >:

Public Types
Typedefs
using	HyperbolicSystem = typename HD::HyperbolicSystem
using	ParabolicSystem = typename PD::ParabolicSystem
using	HyperbolicModule = typename HD::template HyperbolicModule< dim, Number >
using	ParabolicModule = typename PD::template ParabolicModule< HD, dim, Number >

Public Member Functions
Constructor and destructor
	Simulation (const MPI_Comm &mpi_comm)
	~Simulation () override
Task
void	prepare (TaskContext< Number > &context) override
void	execute (TaskContext< Number > &context) override
Public Member Functions inherited from ryujin::Interface::Simulation< dim, Number >
void	interpolate_analytic_solution (StateVector< Number > &analytic, Number t) const
Public Member Functions inherited from ryujin::Interface::Task< Number >
virtual	~Task ()=default
virtual void	initialize (TaskContext< Number > &)
virtual void	start (TaskContext< Number > &)
virtual void	finalize (TaskContext< Number > &)
virtual void	save (boost::archive::binary_oarchive &) const
virtual void	load (boost::archive::binary_iarchive &)

Additional Inherited Members
Protected Member Functions inherited from ryujin::Interface::Simulation< dim, Number >
	Simulation ()
Protected Member Functions inherited from ryujin::Interface::Task< Number >
	Task (const std::string &name, TaskPhase phase)
Protected Attributes inherited from ryujin::Interface::Simulation< dim, Number >
std::unique_ptr< MPIEnsemble >	mpi_ensemble_
std::unique_ptr< Discretization< dim > >	discretization_
std::unique_ptr< OfflineData< dim, Number > >	offline_data_
const HyperbolicSystem *	hyperbolic_system_ = nullptr
const ParabolicSystem *	parabolic_system_ = nullptr
const InitialValues< dim, Number > *	initial_values_ = nullptr
std::unique_ptr< HyperbolicModule< dim, Number > >	hyperbolic_module_
std::unique_ptr< ParabolicModule< dim, Number > >	parabolic_module_
std::unique_ptr< TimeIntegrator< dim, Number > >	time_integrator_
std::unique_ptr< Postprocessor< dim, Number > >	postprocessor_
std::unique_ptr< SolutionTransfer< dim, Number > >	solution_transfer_
StateVector< Number >	state_vector_

Detailed Description

template<typename HD, typename PD, int dim, typename Number = double>
requires Concept::HyperbolicDescription<HD, dim, Number> && Concept::ParabolicDescription<PD, HD, dim, Number>
class ryujin::Simulation< HD, PD, dim, Number >

The Simulation constructs the core objects of a simulation for a given pairing of a hyperbolic and a parabolic description.

In addition to the objects stored in Interface::Simulation it owns the per-ensemble containers of the hyperbolic system, the parabolic system, and the initial values.

The Simulation implements the primary task "time integration" of the Scheduler: prepare() sets up the discretization and the state vector, and execute() performs the time step.

Definition at line 43 of file simulation.h.

Member Typedef Documentation

HyperbolicSystem

template<typename HD , typename PD , int dim, typename Number = double>

using ryujin::Simulation< HD, PD, dim, Number >::HyperbolicSystem = typename HD::HyperbolicSystem

Definition at line 51 of file simulation.h.

ParabolicSystem

template<typename HD , typename PD , int dim, typename Number = double>

using ryujin::Simulation< HD, PD, dim, Number >::ParabolicSystem = typename PD::ParabolicSystem

Definition at line 52 of file simulation.h.

HyperbolicModule

template<typename HD , typename PD , int dim, typename Number = double>

using ryujin::Simulation< HD, PD, dim, Number >::HyperbolicModule = typename HD::template HyperbolicModule<dim, Number>

Definition at line 53 of file simulation.h.

ParabolicModule

template<typename HD , typename PD , int dim, typename Number = double>

using ryujin::Simulation< HD, PD, dim, Number >::ParabolicModule = typename PD::template ParabolicModule<HD, dim, Number>

Definition at line 55 of file simulation.h.

Constructor & Destructor Documentation

Simulation()

template<typename HD , typename PD , int dim, typename Number = double>

ryujin::Simulation< HD, PD, dim, Number >::Simulation ( const MPI_Comm &  mpi_comm )

inline

Constructor.

Definition at line 67 of file simulation.h.

References ryujin::Interface::Simulation< dim, Number >::discretization_, ryujin::Interface::Simulation< dim, Number >::hyperbolic_module_, ryujin::Interface::Simulation< dim, Number >::hyperbolic_system_, ryujin::Interface::Simulation< dim, Number >::initial_values_, ryujin::Interface::Simulation< dim, Number >::mpi_ensemble_, ryujin::Interface::Simulation< dim, Number >::offline_data_, ryujin::Interface::Simulation< dim, Number >::parabolic_module_, ryujin::Interface::Simulation< dim, Number >::parabolic_system_, ryujin::Interface::Simulation< dim, Number >::postprocessor_, ryujin::DeviceTimer::reinit(), ryujin::Interface::Simulation< dim, Number >::solution_transfer_, and ryujin::Interface::Simulation< dim, Number >::time_integrator_.

~Simulation()

template<typename HD , typename PD , int dim, typename Number = double>

ryujin::Simulation< HD, PD, dim, Number >::~Simulation ( )

inlineoverridevirtual

Destructor. Destroys all objects in the reverse order of construction because the objects observe each other.

Reimplemented from ryujin::Interface::Simulation< dim, Number >.

Definition at line 158 of file simulation.h.

References ryujin::Interface::Simulation< dim, Number >::discretization_, ryujin::Interface::Simulation< dim, Number >::hyperbolic_module_, ryujin::Interface::Simulation< dim, Number >::hyperbolic_system_, ryujin::Interface::Simulation< dim, Number >::initial_values_, ryujin::Interface::Simulation< dim, Number >::mpi_ensemble_, ryujin::Interface::Simulation< dim, Number >::offline_data_, ryujin::Interface::Simulation< dim, Number >::parabolic_module_, ryujin::Interface::Simulation< dim, Number >::parabolic_system_, ryujin::Interface::Simulation< dim, Number >::postprocessor_, ryujin::Interface::Simulation< dim, Number >::solution_transfer_, ryujin::Interface::Simulation< dim, Number >::state_vector_, and ryujin::Interface::Simulation< dim, Number >::time_integrator_.

Member Function Documentation

prepare()

template<typename HD , typename PD , int dim, typename Number = double>

void ryujin::Simulation< HD, PD, dim, Number >::prepare ( TaskContext< Number > &  context )

inlineoverridevirtual

Prepare the discretization and the state vector for the current mesh.

If no triangulation has been created (or loaded from a checkpoint) yet, create the mesh. If a state vector is attached to the triangulation (after a mesh adaptation or a resume), project it onto the new mesh; otherwise interpolate the initial values.

Reimplemented from ryujin::Interface::Task< Number >.

Definition at line 192 of file simulation.h.

References ryujin::TaskContext< Number >::base_name, ryujin::debug_poison_invalid_values(), ryujin::Interface::Simulation< dim, Number >::discretization_, ryujin::Interface::Simulation< dim, Number >::hyperbolic_module_, ryujin::TaskContext< Number >::info, ryujin::Interface::Simulation< dim, Number >::initial_values_, ryujin::Interface::Simulation< dim, Number >::mpi_ensemble_, ryujin::Interface::Simulation< dim, Number >::offline_data_, ryujin::Interface::Simulation< dim, Number >::parabolic_module_, ryujin::Interface::Simulation< dim, Number >::solution_transfer_, ryujin::Interface::Simulation< dim, Number >::state_vector_, ryujin::TaskContext< Number >::t, and ryujin::Interface::Simulation< dim, Number >::time_integrator_.

execute()

template<typename HD , typename PD , int dim, typename Number = double>

void ryujin::Simulation< HD, PD, dim, Number >::execute ( TaskContext< Number > &  context )

inlineoverridevirtual

Perform a time step from t to t + tau with the TimeIntegrator and prepare the state vector at time t + tau.

Implements ryujin::Interface::Task< Number >.

Definition at line 242 of file simulation.h.

References ryujin::Interface::Simulation< dim, Number >::state_vector_, ryujin::TaskContext< Number >::t, ryujin::TaskContext< Number >::t_max, ryujin::TaskContext< Number >::tau, and ryujin::Interface::Simulation< dim, Number >::time_integrator_.

---

The documentation for this class was generated from the following file:

• include/ryujin/driver/simulation.h
