#include <include/ryujin/interface/simulation.h>

Inheritance diagram for ryujin::Interface::Simulation< dim, Number >:

[legend]

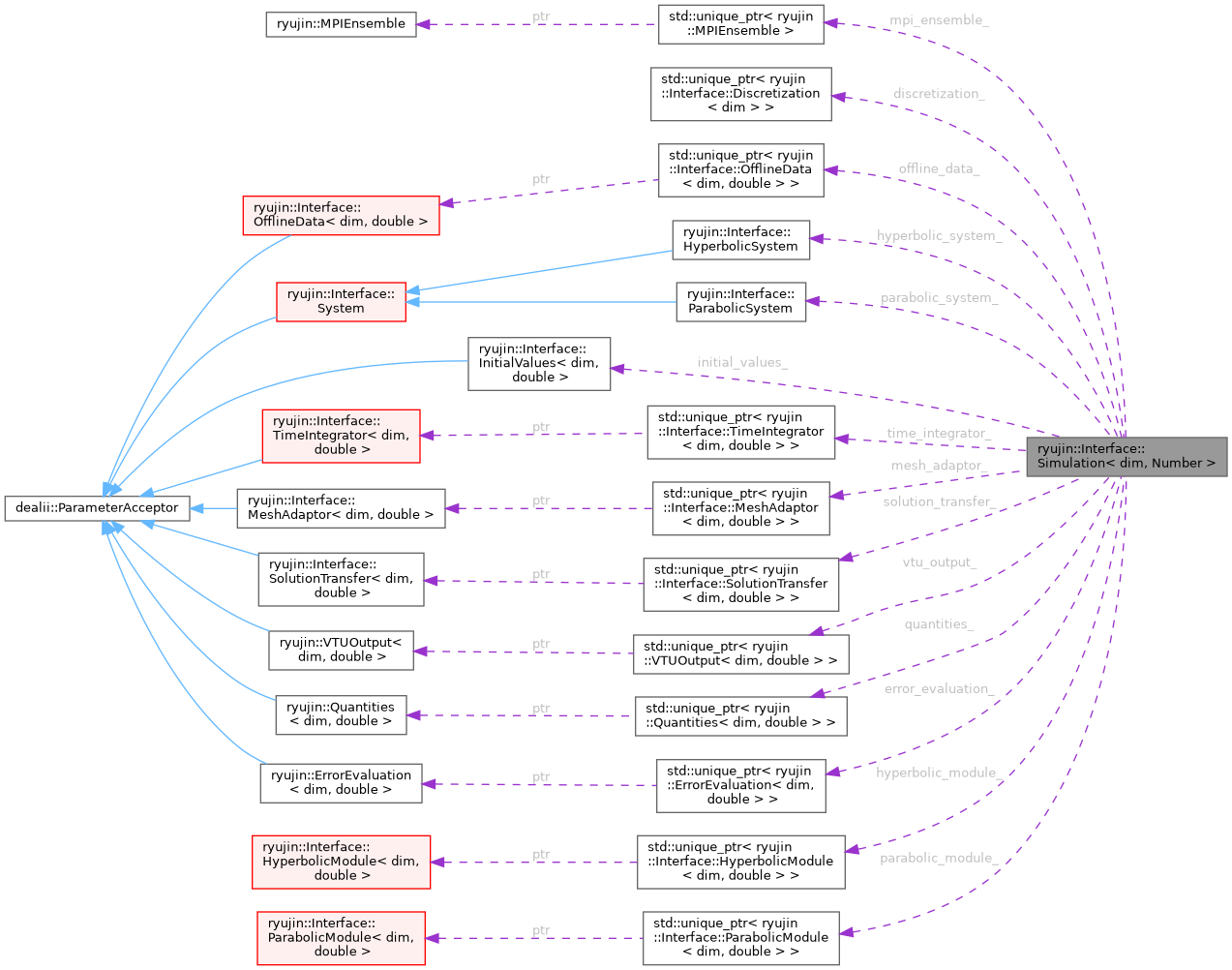

Collaboration diagram for ryujin::Interface::Simulation< dim, Number >:

[legend]

Public Member Functions
virtual	~Simulation ()=default

Public Member Functions inherited from ryujin::Interface::Task< Number >
virtual	~Task ()=default

virtual void	initialize (TaskContext< Number > &)

virtual void	start (TaskContext< Number > &)

virtual void	prepare (TaskContext< Number > &)

virtual void	execute (TaskContext< Number > &context)=0

virtual void	finalize (TaskContext< Number > &)

virtual void	save (boost::archive::binary_oarchive &) const

virtual void	load (boost::archive::binary_iarchive &)

Functions
std::unique_ptr< MPIEnsemble >	mpi_ensemble_

std::unique_ptr< Discretization< dim > >	discretization_

std::unique_ptr< OfflineData< dim, Number > >	offline_data_

const HyperbolicSystem *	hyperbolic_system_ = nullptr

const ParabolicSystem *	parabolic_system_ = nullptr

const InitialValues< dim, Number > *	initial_values_ = nullptr

std::unique_ptr< HyperbolicModule< dim, Number > >	hyperbolic_module_

std::unique_ptr< ParabolicModule< dim, Number > >	parabolic_module_

std::unique_ptr< TimeIntegrator< dim, Number > >	time_integrator_

std::unique_ptr< Postprocessor< dim, Number > >	postprocessor_

std::unique_ptr< SolutionTransfer< dim, Number > >	solution_transfer_

StateVector< Number >	state_vector_

void	interpolate_analytic_solution (StateVector< Number > &analytic, Number t) const

	Simulation ()

Additional Inherited Members
Protected Member Functions inherited from ryujin::Interface::Task< Number >
	Task (const std::string &name, TaskPhase phase)

Detailed Description

template<int dim, typename Number = double>
class ryujin::Interface::Simulation< dim, Number >

The description-free interface of a Simulation: it stores the core objects of a simulation, the discretization, the modules, the time integrator, and the state vector, and has an accessor for each. Tasks work with the Simulation through this interface.

The Simulation is the primary task "time integration" of the Scheduler that performs the time step in the step phase.

The objects are constructed by a derived class, see the typed Simulation, which is the only class that sees the hyperbolic and the parabolic description.

Definition at line 47 of file simulation.h.

Constructor & Destructor Documentation

◆ ~Simulation()

template<int dim, typename Number = double>

virtual ryujin::Interface::Simulation< dim, Number >::~Simulation ( )

virtualdefault

Destructor.

Reimplemented in ryujin::Simulation< HD, PD, dim, Number >.

◆ Simulation()

template<int dim, typename Number = double>

ryujin::Interface::Simulation< dim, Number >::Simulation ( )

inlineprotected

Constructor.

Definition at line 120 of file simulation.h.

Member Function Documentation

◆ interpolate_analytic_solution()

template<int dim, typename Number = double>

void ryujin::Interface::Simulation< dim, Number >::interpolate_analytic_solution	(	StateVector< Number > &	analytic,
		Number	t
	)		const

inline

Interpolate the analytic solution at time t into the state vector analytic and populate precomputed values. In contrast to TimeIntegrator::prepare_state_vector() no boundary conditions are applied.

Definition at line 100 of file simulation.h.

References ryujin::Interface::Simulation< dim, Number >::hyperbolic_module_, ryujin::Interface::Simulation< dim, Number >::initial_values_, and ryujin::Interface::Simulation< dim, Number >::parabolic_module_.

Member Data Documentation

◆ mpi_ensemble_

template<int dim, typename Number = double>

std::unique_ptr<MPIEnsemble> ryujin::Interface::Simulation< dim, Number >::mpi_ensemble_

protected

Definition at line 125 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ discretization_

template<int dim, typename Number = double>

std::unique_ptr<Discretization<dim> > ryujin::Interface::Simulation< dim, Number >::discretization_

protected

Definition at line 126 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ offline_data_

template<int dim, typename Number = double>

std::unique_ptr<OfflineData<dim, Number> > ryujin::Interface::Simulation< dim, Number >::offline_data_

protected

Definition at line 127 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ hyperbolic_system_

template<int dim, typename Number = double>

const HyperbolicSystem* ryujin::Interface::Simulation< dim, Number >::hyperbolic_system_ = nullptr

protected

The systems and the initial values exist once per MPI ensemble. A derived class owns them in MPIEnsembleContainer objects; the pointers refer to the instance of the current ensemble.

Definition at line 134 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ parabolic_system_

template<int dim, typename Number = double>

const ParabolicSystem* ryujin::Interface::Simulation< dim, Number >::parabolic_system_ = nullptr

protected

Definition at line 135 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ initial_values_

template<int dim, typename Number = double>

const InitialValues<dim, Number>* ryujin::Interface::Simulation< dim, Number >::initial_values_ = nullptr

protected

Definition at line 136 of file simulation.h.

Referenced by ryujin::Interface::Simulation< dim, Number >::interpolate_analytic_solution(), ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ hyperbolic_module_

template<int dim, typename Number = double>

std::unique_ptr<HyperbolicModule<dim, Number> > ryujin::Interface::Simulation< dim, Number >::hyperbolic_module_

protected

Definition at line 138 of file simulation.h.

Referenced by ryujin::Interface::Simulation< dim, Number >::interpolate_analytic_solution(), ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ parabolic_module_

template<int dim, typename Number = double>

std::unique_ptr<ParabolicModule<dim, Number> > ryujin::Interface::Simulation< dim, Number >::parabolic_module_

protected

Definition at line 139 of file simulation.h.

Referenced by ryujin::Interface::Simulation< dim, Number >::interpolate_analytic_solution(), ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ time_integrator_

template<int dim, typename Number = double>

std::unique_ptr<TimeIntegrator<dim, Number> > ryujin::Interface::Simulation< dim, Number >::time_integrator_

protected

Definition at line 140 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::execute(), ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ postprocessor_

template<int dim, typename Number = double>

std::unique_ptr<Postprocessor<dim, Number> > ryujin::Interface::Simulation< dim, Number >::postprocessor_

protected

Definition at line 141 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ solution_transfer_

template<int dim, typename Number = double>

std::unique_ptr<SolutionTransfer<dim, Number> > ryujin::Interface::Simulation< dim, Number >::solution_transfer_

protected

Definition at line 142 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::prepare(), ryujin::Simulation< HD, PD, dim, Number >::Simulation(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

◆ state_vector_

template<int dim, typename Number = double>

StateVector<Number> ryujin::Interface::Simulation< dim, Number >::state_vector_

protected

Definition at line 144 of file simulation.h.

Referenced by ryujin::Simulation< HD, PD, dim, Number >::execute(), ryujin::Simulation< HD, PD, dim, Number >::prepare(), and ryujin::Simulation< HD, PD, dim, Number >::~Simulation().

The documentation for this class was generated from the following file:

include/ryujin/interface/simulation.h
