ryujin::Interface::TimeIntegrator< dim, Number > Class Template Reference

#include <include/ryujin/interface/time_integrator.h>

Inheritance diagram for ryujin::Interface::TimeIntegrator< dim, Number >:

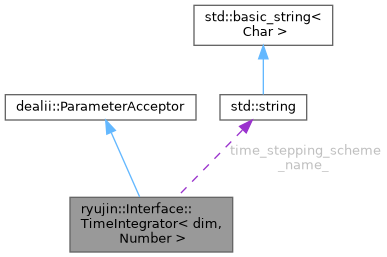

Collaboration diagram for ryujin::Interface::TimeIntegrator< dim, Number >:

Public Member Functions
Setup
virtual void	prepare ()=0
Functions for performing time steps
virtual void	prepare_state_vector (StateVector< Number > &state_vector, Number t) const =0
virtual Number	step (StateVector< Number > &state_vector, Number t, Number tau, Number tau_max=std::numeric_limits< Number >::max())=0

Information and statistics
std::string	time_stepping_scheme_name_
Number	efficiency_
	TimeIntegrator (const std::string &subsection)

Detailed Description

template<int dim, typename Number = double>
class ryujin::Interface::TimeIntegrator< dim, Number >

The description-free interface of a TimeIntegrator: it advances the state vector of a Simulation by one time step.

In addition to the time step the interface holds the name and the efficiency of the time-stepping scheme.

Definition at line 31 of file time_integrator.h.

Constructor & Destructor Documentation

TimeIntegrator()

template<int dim, typename Number = double>

ryujin::Interface::TimeIntegrator< dim, Number >::TimeIntegrator ( const std::string &  subsection )

inlineexplicitprotected

The name of the selected time-stepping scheme.

Note

Valid once prepare() has been called. The efficiency of the selected time-stepping scheme expressed as the ratio of step size of the combined method to step size of an elementary forward Euler step. For example, SSPRK33 has an efficiency ratio of 1 whereas ERK33 has an efficiency ratio of 3.

Valid once prepare() has been called. Constructor.

Definition at line 107 of file time_integrator.h.

Member Function Documentation

prepare()

template<int dim, typename Number = double>

virtual void ryujin::Interface::TimeIntegrator< dim, Number >::prepare ( )

pure virtual

Prepare time integration. A call to prepare() is necessary before any of the following functions can be called.

Implemented in ryujin::TimeIntegrator< dim, Number >.

prepare_state_vector()

template<int dim, typename Number = double>

virtual void ryujin::Interface::TimeIntegrator< dim, Number >::prepare_state_vector ( StateVector< Number > &  state_vector, Number  t  ) const

pure virtual

Preprocess a given state vector state_vector at time t for time stepping. It has to be called prior to step() to ensure that precomputed values are in place.

Implemented in ryujin::TimeIntegrator< dim, Number >.

step()

template<int dim, typename Number = double>

virtual Number ryujin::Interface::TimeIntegrator< dim, Number >::step ( StateVector< Number > &  state_vector, Number  t, Number  tau, Number  tau_max = std::numeric_limits< Number >::max()  )

pure virtual

Given a reference to a previous state vector state_vector at time t perform a time step (and store the result in state_vector). The function returns the time step size tau with which the update was performed.

If tau is nonzero the step is performed with tau. If tau is 0 the time step size is chosen such that it is less than or equal to tau_max.

Precondition

The state_vector has to be prepared with prepare_state_vector() prior to calling step().

Implemented in ryujin::TimeIntegrator< dim, Number >.

Member Data Documentation

time_stepping_scheme_name_

template<int dim, typename Number = double>

std::string ryujin::Interface::TimeIntegrator< dim, Number >::time_stepping_scheme_name_

protected

Definition at line 113 of file time_integrator.h.

efficiency_

template<int dim, typename Number = double>

Number ryujin::Interface::TimeIntegrator< dim, Number >::efficiency_

protected

Definition at line 114 of file time_integrator.h.

---

The documentation for this class was generated from the following file:

• include/ryujin/interface/time_integrator.h
