ryujin::Interface::Task< Number > Class Template Reference

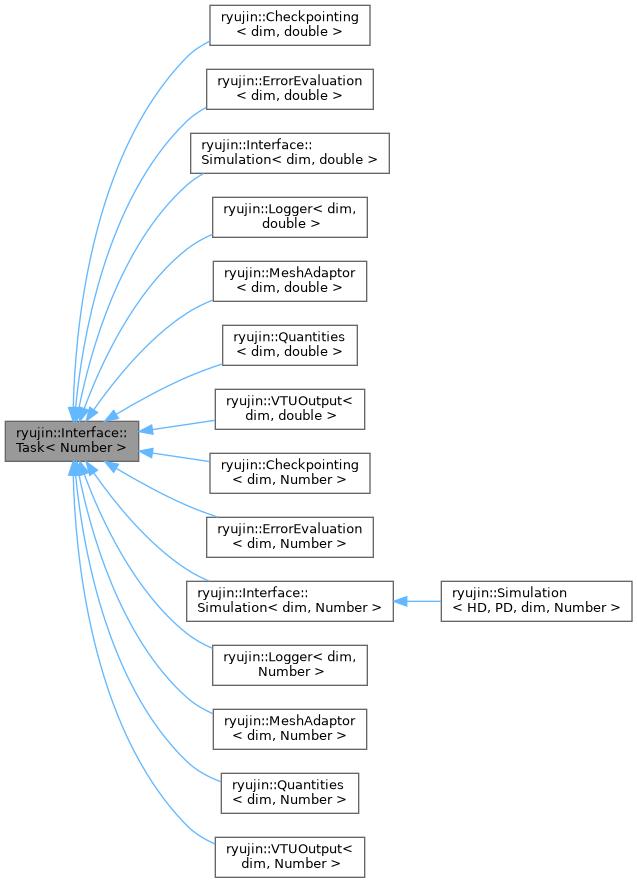

Inheritance diagram for ryujin::Interface::Task< Number >:

Public Member Functions
virtual	~Task ()=default
Setup
virtual void	initialize (TaskContext< Number > &)
virtual void	start (TaskContext< Number > &)
virtual void	prepare (TaskContext< Number > &)
Execution
virtual void	execute (TaskContext< Number > &context)=0
virtual void	finalize (TaskContext< Number > &)
Checkpointing
virtual void	save (boost::archive::binary_oarchive &) const
virtual void	load (boost::archive::binary_iarchive &)

Information
	Task (const std::string &name, TaskPhase phase)

Detailed Description

template<typename Number = double>
class ryujin::Interface::Task< Number >

The interface of a Task: an operation that the Scheduler executes in a given TaskPhase of every cycle.

The Scheduler calls the functions of all active tasks in the following order:

• initialize() once at the begin,
• start() once after all tasks have been initialized,
• prepare() after start() and whenever a task of the adapt phase sets TaskContext::prepare_required,
• execute() in the phase of the task in every cycle,
• finalize() once at the end, in reverse order.

In addition, a task stores its internal state in checkpoints with save() and load().

Definition at line 342 of file task.h.

Constructor & Destructor Documentation

~Task()

template<typename Number = double>

virtual ryujin::Interface::Task< Number >::~Task ( )

virtualdefault

Destructor.

Task()

template<typename Number = double>

ryujin::Interface::Task< Number >::Task ( const std::string &  name, TaskPhase  phase  )

inlineprotected

The name of the task, used for selecting it in the parameter file. The phase in which the task runs. Constructor taking the name of the task and the phase in which it runs.

Definition at line 439 of file task.h.

Member Function Documentation

initialize()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::initialize ( TaskContext< Number > &  )

inlinevirtual

Initialize the task.

Called once at the very beginning.

Reimplemented in ryujin::Logger< dim, Number >, and ryujin::ErrorEvaluation< dim, Number >.

Definition at line 360 of file task.h.

start()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::start ( TaskContext< Number > &  )

inlinevirtual

Start the computation.

Called once after all tasks have been initialized and before the first call to prepare().

Reimplemented in ryujin::Checkpointing< dim, Number >, and ryujin::Logger< dim, Number >.

Definition at line 368 of file task.h.

prepare()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::prepare ( TaskContext< Number > &  )

inlinevirtual

Prepare the task for the current mesh.

Called after start() and whenever a task of the adapt phase sets TaskContext::prepare_required.

Note

prepare() must preserve the internal state of the task.

Reimplemented in ryujin::MeshAdaptor< dim, Number >, ryujin::Logger< dim, Number >, ryujin::Simulation< HD, PD, dim, Number >, ryujin::Quantities< dim, Number >, and ryujin::VTUOutput< dim, Number >.

Definition at line 378 of file task.h.

execute()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::execute ( TaskContext< Number > &  context )

pure virtual

Execute the task. Called in every cycle in the selected phase of the task.

Implemented in ryujin::MeshAdaptor< dim, Number >, ryujin::Checkpointing< dim, Number >, ryujin::Logger< dim, Number >, ryujin::Simulation< HD, PD, dim, Number >, ryujin::ErrorEvaluation< dim, Number >, ryujin::Quantities< dim, Number >, and ryujin::VTUOutput< dim, Number >.

finalize()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::finalize ( TaskContext< Number > &  )

inlinevirtual

Finalize the task. Called once at the end.

Reimplemented in ryujin::Checkpointing< dim, Number >, ryujin::Logger< dim, Number >, and ryujin::ErrorEvaluation< dim, Number >.

Definition at line 395 of file task.h.

save()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::save ( boost::archive::binary_oarchive &  ) const

inlinevirtual

Store the internal state of the task in a checkpoint. Called on all MPI ranks; but only the data of rank 0 is written.

Definition at line 407 of file task.h.

load()

template<typename Number = double>

virtual void ryujin::Interface::Task< Number >::load ( boost::archive::binary_iarchive &  )

inlinevirtual

Restore the internal state of the task from a checkpoint. Called on all MPI ranks with the data written by save() on rank 0.

Definition at line 413 of file task.h.

---

The documentation for this class was generated from the following file:

• include/ryujin/interface/task.h
