ryujin::Interface::HyperbolicSystem Class Reference

#include <include/ryujin/interface/hyperbolic_system.h>

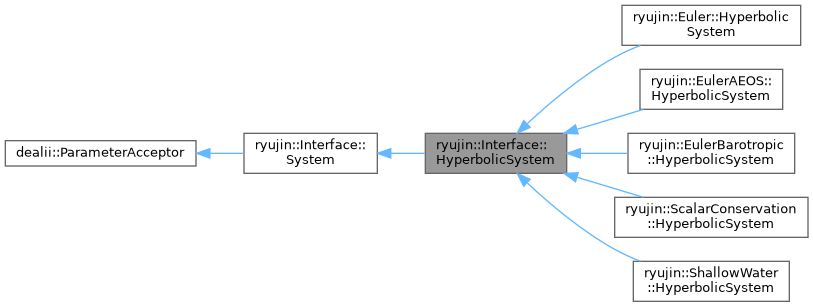

Inheritance diagram for ryujin::Interface::HyperbolicSystem:

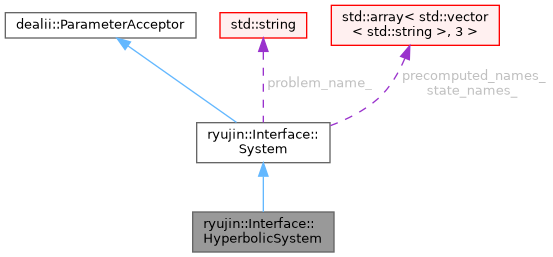

Collaboration diagram for ryujin::Interface::HyperbolicSystem:

Public Types
using	Names = std::array< std::vector< std::string >, 3 >

Public Member Functions
const std::vector< std::string > &	state_names (const unsigned int dim) const
const std::vector< std::string > &	precomputed_names (const unsigned int dim) const
const std::vector< std::string > &	primitive_names (const unsigned int dim) const
const std::vector< std::string > &	initial_precomputed_names (const unsigned int dim) const

Protected Member Functions
	HyperbolicSystem (const std::string &problem_name, const Names &state_names, const Names &primitive_names, const Names &precomputed_names, const Names &initial_precomputed_names, const std::string &subsection)

Protected Attributes
std::string	problem_name_
Names	state_names_
Names	precomputed_names_
Names	primitive_names_
Names	initial_precomputed_names_

Detailed Description

The description-free part of a hyperbolic system: its name and the names of its components.

The first View<dim>::problem_dimension state names and the first View<dim>::n_precomputed_values precomputed names are static: they are stored interleaved in StateVector::state and StateVector::precomputed. All remaining names are dynamic: they are stored as scalar vectors in StateVector::dynamic_state and StateVector::dynamic_precomputed.

The primitive names (View<dim>::problem_dimension entries) name the primitive state returned by View::to_primitive_state(), and the initial precomputed names (View<dim>::n_initial_precomputed_values entries) name the time-independent initial precomputed values.

Definition at line 40 of file hyperbolic_system.h.

Member Typedef Documentation

Names

using ryujin::Interface::HyperbolicSystem::Names = std::array<std::vector<std::string>, 3>

The name of the system as a string. A list of component names for every dimension:

Definition at line 51 of file hyperbolic_system.h.

Constructor & Destructor Documentation

HyperbolicSystem()

ryujin::Interface::HyperbolicSystem::HyperbolicSystem ( const std::string &  problem_name, const Names &  state_names, const Names &  primitive_names, const Names &  precomputed_names, const Names &  initial_precomputed_names, const std::string &  subsection  )

inlineprotected

Constructor.

Definition at line 107 of file hyperbolic_system.h.

Member Function Documentation

state_names()

const std::vector< std::string > & ryujin::Interface::HyperbolicSystem::state_names ( const unsigned int  dim ) const

inline

The names of the state components for dimension dim.

Note

Valid once the run time parameters are parsed.

Definition at line 58 of file hyperbolic_system.h.

References state_names_.

precomputed_names()

const std::vector< std::string > & ryujin::Interface::HyperbolicSystem::precomputed_names ( const unsigned int  dim ) const

inline

The names of the precomputed values for dimension dim.

Note

Valid once the run time parameters are parsed.

Definition at line 70 of file hyperbolic_system.h.

References precomputed_names_.

primitive_names()

const std::vector< std::string > & ryujin::Interface::HyperbolicSystem::primitive_names ( const unsigned int  dim ) const

inline

The names of the primitive state components for dimension dim.

Note

Valid once the run time parameters are parsed.

Definition at line 82 of file hyperbolic_system.h.

References primitive_names_.

initial_precomputed_names()

const std::vector< std::string > & ryujin::Interface::HyperbolicSystem::initial_precomputed_names ( const unsigned int  dim ) const

inline

The names of the initial precomputed values for dimension dim.

Initial precomputed values are time-independent and stored outside of the state vector.

Note

Valid once the run time parameters are parsed.

Definition at line 97 of file hyperbolic_system.h.

References initial_precomputed_names_.

Member Data Documentation

problem_name_

std::string ryujin::Interface::HyperbolicSystem::problem_name_

protected

The name of the system.

Note

A derived class may update it once the run time parameters are known.

Definition at line 128 of file hyperbolic_system.h.

state_names_

Names ryujin::Interface::HyperbolicSystem::state_names_

protected

The names of the state components for every dimension.

Note

A derived class may update them once the run time parameters are known.

Definition at line 136 of file hyperbolic_system.h.

Referenced by state_names().

precomputed_names_

Names ryujin::Interface::HyperbolicSystem::precomputed_names_

protected

The names of the precomputed values for every dimension.

Note

A derived class may update them once the run time parameters are known.

Definition at line 144 of file hyperbolic_system.h.

Referenced by precomputed_names().

primitive_names_

Names ryujin::Interface::HyperbolicSystem::primitive_names_

protected

The names of the primitive state components for every dimension.

Note

A derived class may update them once the run time parameters are known.

Definition at line 152 of file hyperbolic_system.h.

Referenced by primitive_names().

initial_precomputed_names_

Names ryujin::Interface::HyperbolicSystem::initial_precomputed_names_

protected

The names of the initial precomputed values for every dimension.

Note

A derived class may update them once the run time parameters are known.

Definition at line 160 of file hyperbolic_system.h.

Referenced by initial_precomputed_names().

---

The documentation for this class was generated from the following file:

• include/ryujin/interface/hyperbolic_system.h
