ryujin::EulerBarotropic::HyperbolicSystem Class Reference

#include <source/euler_barotropic/hyperbolic_system.h>

Inheritance diagram for ryujin::EulerBarotropic::HyperbolicSystem:

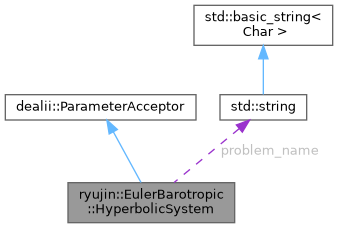

Collaboration diagram for ryujin::EulerBarotropic::HyperbolicSystem:

Classes
struct	Parameters

Public Types
template<int dim, typename Number = double, typename MemorySpace = dealii::MemorySpace::Host>
using	View = HyperbolicSystemView< dim, Number, MemorySpace >

Public Member Functions
	HyperbolicSystem (const std::string &subsection="/HyperbolicSystem")
template<int dim, typename Number , typename MemorySpace = dealii::MemorySpace::Host>
auto	view () const
template<typename MemorySpace = dealii::MemorySpace::Host, int dim, typename ScalarNumber >
void	fill_precomputed_values (const OfflineData< dim, ScalarNumber > &offline_data, StateVector< ScalarNumber > &state_vector, const bool skip_constrained_dofs=true) const

Internal fields, methods, and friends
template<int , typename , typename >
class	HyperbolicSystemView

Detailed Description

The compressible Euler equations of gas dynamics. Specialized implementation for a subclass of barotropic equations of state where the pressure, internal energy and entropies are a function of the density. We use a specialied Riemann solver, entropy viscosity commutator, and limiter for this class of equations.

We have a (1 + dim) dimensional state space \([\rho, \textbf m]\), where \(\rho\) denotes the density, \(\textbf m\) is the momentum.

Definition at line 51 of file hyperbolic_system.h.

Member Typedef Documentation

View

template<int dim, typename Number = double, typename MemorySpace = dealii::MemorySpace::Host>

using ryujin::EulerBarotropic::HyperbolicSystem::View = HyperbolicSystemView<dim, Number, MemorySpace>

Alias for the view on the hyperbolic system for a given dimension dim, choice of number type Number, and memory space MemorySpace.

Definition at line 77 of file hyperbolic_system.h.

Constructor & Destructor Documentation

HyperbolicSystem()

ryujin::EulerBarotropic::HyperbolicSystem::HyperbolicSystem ( const std::string &  subsection = "/HyperbolicSystem" )

inline

Constructor.

Definition at line 656 of file hyperbolic_system.h.

Member Function Documentation

view()

template<int dim, typename Number , typename MemorySpace = dealii::MemorySpace::Host>

auto ryujin::EulerBarotropic::HyperbolicSystem::view ( ) const

inline

Return a view on the Hyperbolic System for a given dimension dim and choice of number type Number (which can be a scalar float, or double, as well as a VectorizedArray holding packed scalars. The optional MemorySpace template parameter selects whether the view is intended for the host or device memory space.

Definition at line 89 of file hyperbolic_system.h.

Referenced by fill_precomputed_values().

fill_precomputed_values()

template<typename MemorySpace , int dim, typename ScalarNumber >

void ryujin::EulerBarotropic::HyperbolicSystem::fill_precomputed_values ( const OfflineData< dim, ScalarNumber > &  offline_data, StateVector< ScalarNumber > &  state_vector, const bool  skip_constrained_dofs = true  ) const

inline

Part of step 1 of the hyperbolic update step: Compute "precomputed values" and fill into the state vector.

Note

The method does not update the ghost range of the state vector. The precomputed part has to be synchronized by explicitly calling the update ghost values function.

The precomputed values are computed with the selected barotropic equation of state on the host memory space. If MemorySpace is the default (device) memory space the state vector is thus temporarily transferred to the host memory space.

Definition at line 735 of file hyperbolic_system.h.

References ryujin::have_separate_memory_spaces, ryujin::OfflineData< dim, Number >::n_locally_internal(), ryujin::OfflineData< dim, Number >::n_locally_owned(), ryujin::StateVector< Number >::precomputed, ryujin::precomputed, ryujin::OfflineData< dim, Number >::sparsity_pattern_simd(), ryujin::StateVector< Number >::U, and view().

Friends And Related Symbol Documentation

HyperbolicSystemView

template<int , typename , typename >

friend class HyperbolicSystemView

friend

Definition at line 140 of file hyperbolic_system.h.

---

The documentation for this class was generated from the following file:

• source/euler_barotropic/hyperbolic_system.h
