ryujin::Interface::Discretization< dim > Class Template Reference

#include <include/ryujin/interface/discretization.h>

Inheritance diagram for ryujin::Interface::Discretization< dim >:

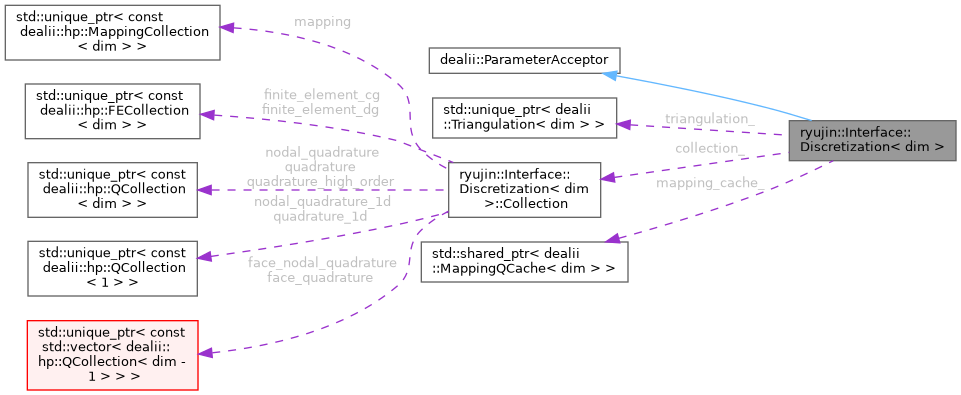

Collaboration diagram for ryujin::Interface::Discretization< dim >:

Classes
struct	Collection

Public Types
Typedefs and constexpr constants
using	Transformation = std::function< dealii::Point< dim >(const typename dealii::Triangulation< dim >::cell_iterator &, const dealii::Point< dim > &)>

Public Member Functions
Setup
virtual void	prepare (const std::string &base_name)=0
virtual void	update_mapping ()=0

Protected Attributes
Internal data
Ansatz	ansatz_
unsigned int	refinement_
std::unique_ptr< dealii::Triangulation< dim > >	triangulation_
Collection	collection_
std::shared_ptr< dealii::MappingQCache< dim > >	mapping_cache_
Transformation	transformation_
Geometry< dim > *	selected_geometry_ = nullptr

Information and statistics
bool	have_discontinuous_ansatz () const
unsigned int	polynomial_degree () const
const dealii::hp::FECollection< dim > &	finite_element () const
	Discretization (const std::string &subsection)

Detailed Description

template<int dim>
class ryujin::Interface::Discretization< dim >

The interface of a Discretization: a container for data related to the discretization, this includes the triangulation, finite element, mapping, and quadrature. After prepare() is called, the getter functions triangulation(), finite_element(), mapping(), and quadrature() return valid const references to the mentioned objects.

The interface holds all state in protected fields with a non-virtual accessor each. A derived class fills the fields in prepare() and update_mapping().

Definition at line 210 of file discretization.h.

Member Typedef Documentation

Transformation

template<int dim>

using ryujin::Interface::Discretization< dim >::Transformation = std::function<dealii::Point<dim>( const typename dealii::Triangulation<dim>::cell_iterator &, const dealii::Point<dim> &)>

A forward transformation that maps points of the triangulation to the actual geometry, see Geometry::transformation().

Definition at line 244 of file discretization.h.

Constructor & Destructor Documentation

Discretization()

template<int dim>

ryujin::Interface::Discretization< dim >::Discretization ( const std::string &  subsection )

inlineexplicitprotected

Return a read-only const reference to the quadrature rule.

Note

The accessor returns an QCollection object. Return a read-only const reference to a higher order quadrature rule used for computing errors.

The accessor returns an QCollection object. Return a read-only const reference to the nodal quadrature rule (Gauß Lobatto).

The accessor returns an QCollection object. Return a read-only const reference to the 1D quadrature rule.

The accessor returns an QCollection object. Return a read-only const reference to the 1D nodal quadrature rule (Gauß Lobatto).

The accessor returns an QCollection object. Return a read-only const reference to the face quadrature rules.

The accessor returns a vector of QCollection objects, one per finite element of the collection, that holds one quadrature per face of the reference cell (or a single quadrature used on all faces). Return a read-only const reference to the nodal face quadrature rules (Gauß Lobatto).

The accessor returns a vector of QCollection objects, see face_quadrature(). Constructor.

Definition at line 473 of file discretization.h.

Member Function Documentation

prepare()

template<int dim>

virtual void ryujin::Interface::Discretization< dim >::prepare ( const std::string &  base_name )

pure virtual

Create the triangulation and set up the finite element, mapping and quadrature objects.

Implemented in ryujin::Discretization< dim >.

update_mapping()

template<int dim>

virtual void ryujin::Interface::Discretization< dim >::update_mapping ( )

pure virtual

Recompute the cached mapping after the triangulation, or the transformation(), has changed.

Implemented in ryujin::Discretization< dim >.

have_discontinuous_ansatz()

template<int dim>

bool ryujin::Interface::Discretization< dim >::have_discontinuous_ansatz ( ) const

inline

Return a read-only const reference to the selected geometry. Return a read-only const reference to the finite element ansatz. Return a boolean indicating whether the chosen Ansatz space is discontinuous.

Definition at line 286 of file discretization.h.

References ryujin::Interface::Discretization< dim >::ansatz_, ryujin::cg_q1, ryujin::cg_q2, ryujin::cg_q3, ryujin::dg_q1, ryujin::dg_q2, and ryujin::dg_q3.

Referenced by ryujin::Interface::Discretization< dim >::finite_element().

polynomial_degree()

template<int dim>

unsigned int ryujin::Interface::Discretization< dim >::polynomial_degree ( ) const

inline

Return the polynomial degree of the chosen finite element ansatz.

Definition at line 313 of file discretization.h.

References ryujin::Interface::Discretization< dim >::ansatz_, ryujin::cg_q1, ryujin::cg_q2, ryujin::cg_q3, ryujin::dg_q1, ryujin::dg_q2, and ryujin::dg_q3.

finite_element()

template<int dim>

const dealii::hp::FECollection< dim > & ryujin::Interface::Discretization< dim >::finite_element ( ) const

inline

Return a mutable reference to the refinement variable. Return a mutable reference to the triangulation. Return a read-only const reference to the triangulation. Return a mutable reference to the transformation used for the MappingQCache object.

Note

The transformation will be set initially during the prepare() call provided the selected geometry sets Geometry::transformation(). An empty transformation is treated as the identity.

After updating the transformation a call to update_mapping() is required to reinitialize the underlying MappingQCache. Return a read-only const reference to the transformation. Return a read-only const reference to the mapping.

The accessor returns an MappingCollection object. Return a read-only const reference to a continuous ("cG") variant of the selected finite element space.

If the selected finite element space is continuous then this method simply returns the same object as finite_element().

The accessor returns an FECollection object. Return a read-only const reference to a discontinuous ("dG") variant of the selected finite element space.

If the selected finite element space is discontinuous then this method simply returns the same object as finite_element().

The accessor returns an FECollection object. Return a read-only const reference to the selected finite element.

The accessor returns an FECollection object.

Definition at line 402 of file discretization.h.

References ryujin::Interface::Discretization< dim >::collection_, ryujin::Interface::Discretization< dim >::Collection::finite_element_cg, ryujin::Interface::Discretization< dim >::Collection::finite_element_dg, and ryujin::Interface::Discretization< dim >::have_discontinuous_ansatz().

Member Data Documentation

ansatz_

template<int dim>

Ansatz ryujin::Interface::Discretization< dim >::ansatz_

protected

Definition at line 485 of file discretization.h.

Referenced by ryujin::Interface::Discretization< dim >::have_discontinuous_ansatz(), and ryujin::Interface::Discretization< dim >::polynomial_degree().

refinement_

template<int dim>

unsigned int ryujin::Interface::Discretization< dim >::refinement_

protected

Definition at line 487 of file discretization.h.

triangulation_

template<int dim>

std::unique_ptr<dealii::Triangulation<dim> > ryujin::Interface::Discretization< dim >::triangulation_

protected

Definition at line 489 of file discretization.h.

collection_

template<int dim>

Collection ryujin::Interface::Discretization< dim >::collection_

protected

Definition at line 491 of file discretization.h.

Referenced by ryujin::Interface::Discretization< dim >::finite_element().

mapping_cache_

template<int dim>

std::shared_ptr<dealii::MappingQCache<dim> > ryujin::Interface::Discretization< dim >::mapping_cache_

protected

Definition at line 492 of file discretization.h.

transformation_

template<int dim>

Transformation ryujin::Interface::Discretization< dim >::transformation_

protected

Definition at line 493 of file discretization.h.

selected_geometry_

template<int dim>

Geometry<dim>* ryujin::Interface::Discretization< dim >::selected_geometry_ = nullptr

protected

Definition at line 495 of file discretization.h.

---

The documentation for this class was generated from the following file:

• include/ryujin/interface/discretization.h
